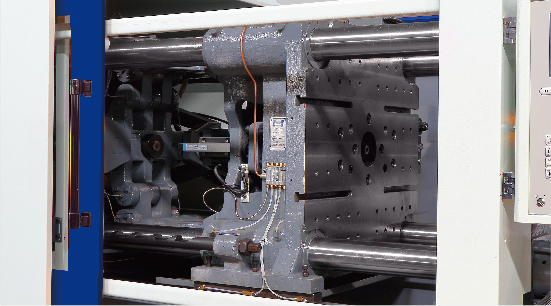

▲  The tie bars are surface-treated with hard chrome plating for wear and corrosion resistance.

▲  The clamping plate base features an adjustable wedge block structure, facilitating adjustment after wear to extend the machine's service life.

▲  Automatic centralized lubrication simplifies machine maintenance.

▲  Equipped with synchronous gear mold adjustment, enabling tooth-count-based automatic mold setting.

▲  The clamping position ruler is connected to the thrust seat, making it easier to adjust the mold protection position.

▲  The optimized toggle linkage mechanism ensures smooth and fast mold opening/closing with long-lasting durability.

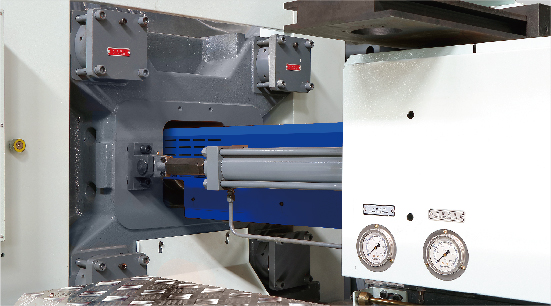

▲  Dual guide rod guidance enhances injection precision.

▲  High-speed hydraulic motor.

▲  Closed-loop control of injection and holding pressures, with precise backpressure control.

▲  Top-down disassembly structure for screw and barrel, allowing for easy replacement.

▲  High-strength mechanical design ensures lasting precision.

▲  The screw is driven by a low-speed, high-torque hydraulic motor, delivering excellent plasticizing performance.

▲  The optimized screw design ensures wide material applicability.

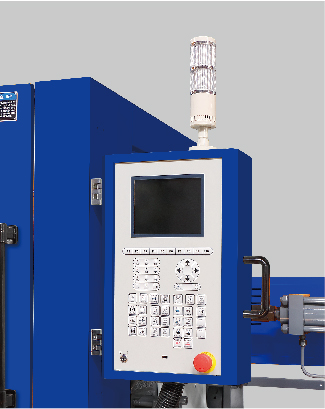

▲  The panel operator interface supports multiple languages.

▲  The system unit utilizes a dual-core microprocessor, offering high speed, noise immunity, and low power consumption.

▲   The USB interface allows for updating or backing up molding and system parameters.

▲  A built-in Ethernet interface enables convenient and fast connectivity.

▲  Features 120 sets of modification records and 120 sets of alarm records, facilitating data retrieval during abnormalities.

▲  Computer boot-up self-test for both software and hardware, along with mechanical fault alarm function.

▲  Supports simultaneous monitoring of multiple machine controllers from an office computer via networking.

▲  The ergonomically designed operation panel can be rotated 90° for easier operator access.

▲  The servo drive supports multiple control modes, including digital and analog control.

▲  Comes standard with various closed-loop monitoring devices such as mold adjustment, part detection, and speed sensing eyes.

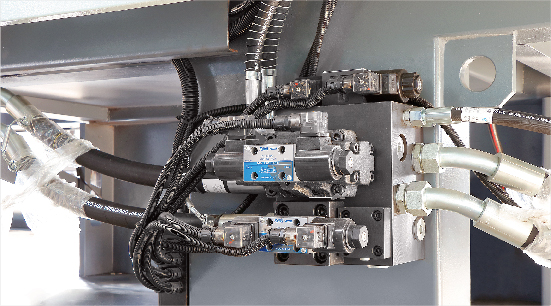

▲  Valve blocks are manufactured using Taiwanese machining technology.

▲  Hydraulic circuit design complies with international safety standards.

▲  Automatic oil temperature monitoring.

▲  Welding-free piping installation ensures long-term reliability and convenient maintenance.

▲  Utilizes internationally renowned hydraulic components.
